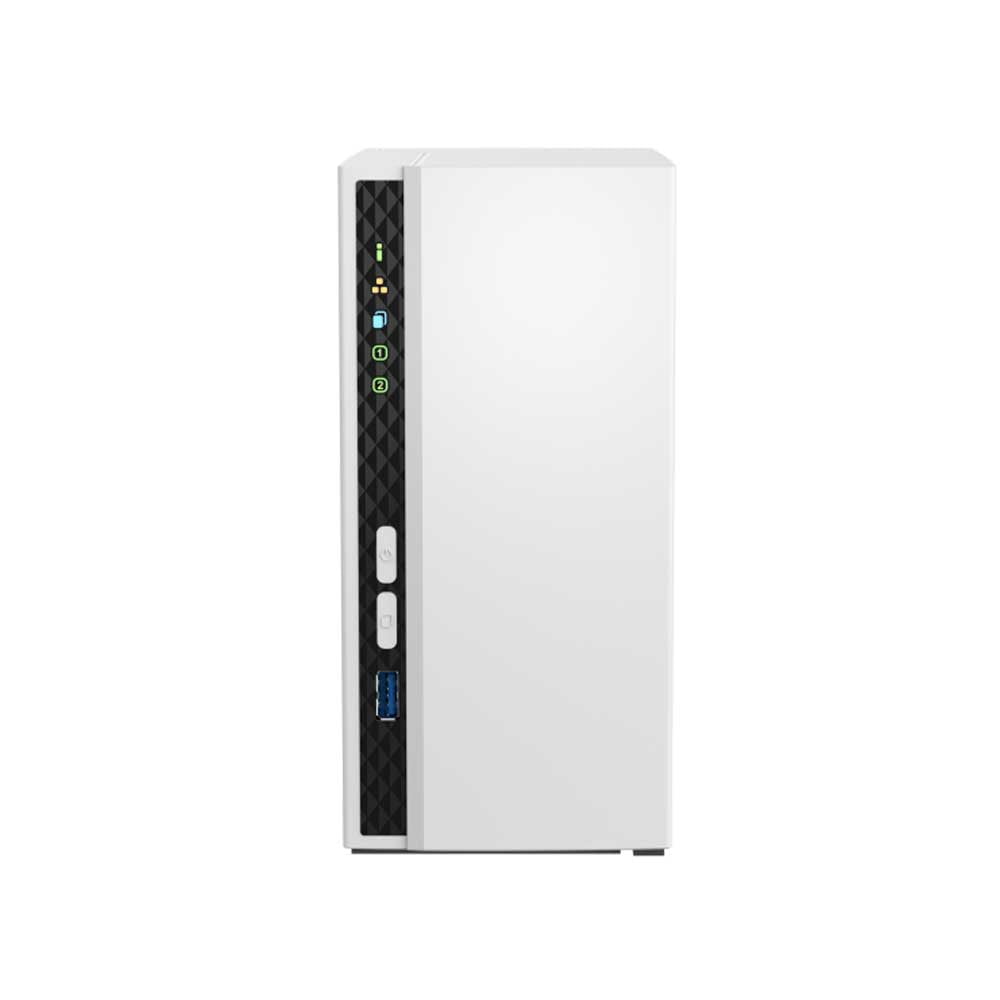

Powered by a ARM® Cortex-A55 quad-core 2 GHz processor, built-in 2 GB RAM, one Gigabit LAN port, and supports two SATA 6Gb/s hard drives, the TS-233 provides dependable read/write performance for running various home and business NAS applications. The TS-233 features AES-NI 256 hardware-accelerated encryption for both full NAS volumes and shared folders, boosting system performance while securing sensitive data. Run your own personal cloud storage and enjoy easy file access, sharing, and syncing with the TS-233. Designed for beginners and home NAS users, the TS-233 not only simplifies data storage and collaboration but also features rich multimedia applications as a complete home entertainment portal.
| CPU | ARM 4-core Cortex-A55 2.0GHz processor |
| CPU Architecture | 64-bit ARM |
| Graphic Processors | Mali-G52 |
| Floating Point Unit | |
| Encryption Engine | |
| Hardware-accelerated Transcoding | |
| Neural Processing Unit (NPU) | |
| System Memory | 2 GB on board (non-expandable) Note: Reserves some RAM for use as shared graphics memory. |
| Maximum Memory | 2 GB on board (non-expandable) |
| Flash Memory | 4 GB (Dual boot OS protection) |
| Drive Bay | 2 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| Gigabit Ethernet Port (RJ45) | 1 |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| USB 2.0 port | 2 |
| USB 3.2 Gen 1 port | 1 |
| Form Factor | Tower |
| LED Indicators | System Status, LAN, USB, HDD1~2 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 186 × 91.7 × 157.6 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 1.69 kg |
| Weight (Gross) | 1.89 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Minimum 48W adapter (12VDC), 100-240VAC |
| Power Consumption: HDD Sleep Mode | 3.43 W |
| Power Consumption: Operating Mode, Typical | 10.81 W Tested with drives fully populated. |
| Fan | 1 x 80mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 2 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 200 |
